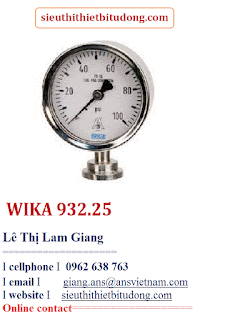

WIKA 932.25,Diaphragm-Type Sanitary Gauge, Wika Việt Nam

Mã code: WIKA 932.25

Hãng sản xuất: Wika Việt Nam

THÔNG TIN SẢN PHẨM:

Part No.: WIKA 932.25


Design
External, flush diaphragm with Tri-Clamp connection, requires hydraulic fluid to transmit pressure to instrument. Unit is autoclaveable when dry case and polysulfone window are specified.

Process Connection
¾" Tri-Clamp

Pressure Ranges
1,500 psi maximum, limited by installation clamp rating

Operating Temperature
Media: +10°F to 100°C (standard)
(>100°C available - consult factory)

Ambient: +10°C to +60°C

Gauge Size
2½", lower mount

Accuracy (Ref. 73°F)
±2/1/2% full span (ASME B40.100, Grade A)

Wetted Parts
316L SS, electropolished

System Fill (FDA Approved)
Glycerine, KN 7: Non-vacuum application
Mineral Oil, KN 92: Vacuum application

Material Identification and Heat Numbers
Engraved in seal body or gauge case

Serial Number
Engraved on back of case
